Wayne® iMeter™ - Flat Inlet, 2 Side with ATC Ports

PMP Wayne® iMeter™ - Flat Inlet, 2 Side with ATC Ports. PMP 26035, OEM 008-048015, 006-048015. PMP Wayne® iMeter™ - Flat Inlet, 2 Side with ATC Ports. PMP 26035, OEM 008-048015, 006-048015. PMP Wayne® iMeter™ - Flat Inlet, 2 Side with ATC Ports. PMP 26035, OEM 008-048015, 006-048015. PMP Wayne® iMeter™ - Flat Inlet, 2 Side with ATC Ports. PMP 26035, OEM 008-048015, 006-048015.
PMP Part #: 26035 OEM Part #: 008-048015OEM Part #: 006-048015

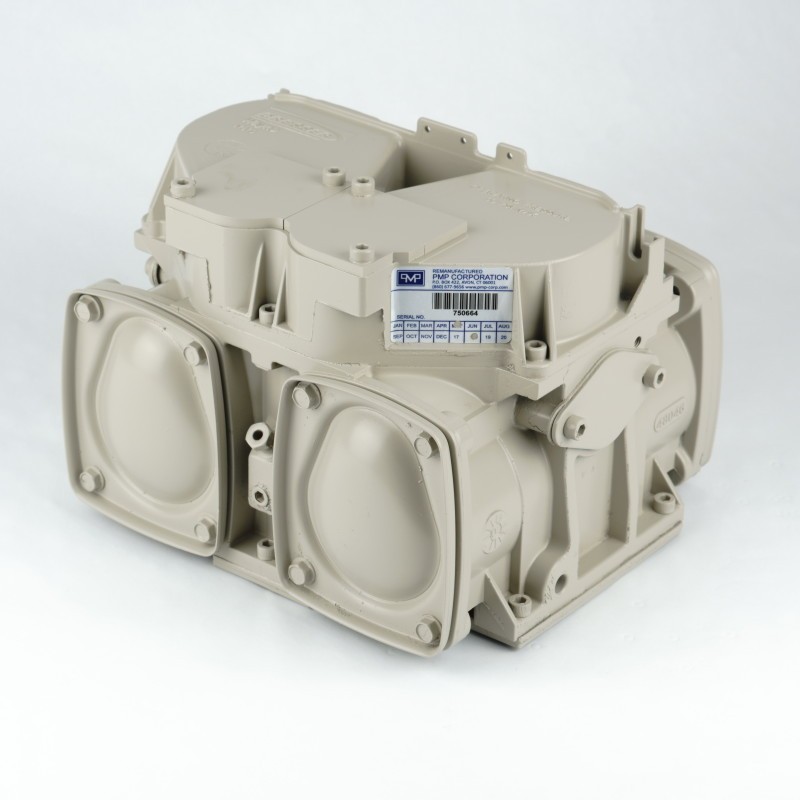

Wayne iMeter - Flat Inlet, 2 Side with ATC Ports

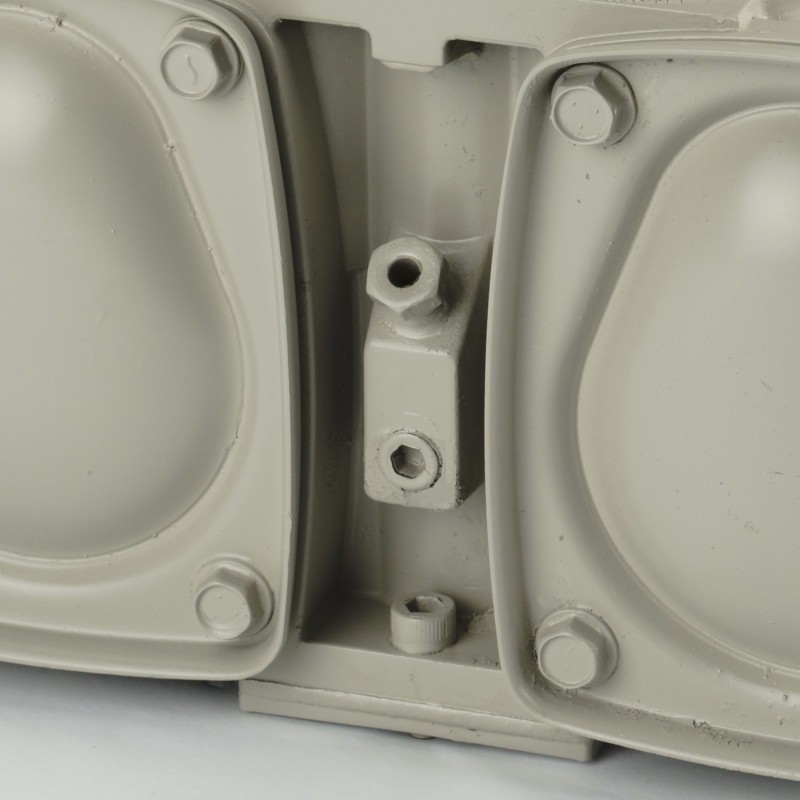

Flat-faced inlet flange, two-sided meter with 1/8" NPT threaded ATC ports.

To identify whether an iMeter has a flat inlet or an O-ring inlet without removing the meter from the dispenser, check the casting number the side of the meter.  The O-ring inlet iMeters are marked 45574 and flat inlet iMeters are marked 48014 or 48046.
