LC® M-5® Unibody Meter, 2-screw dust cover, low adjuster housing, 24T packing gland gear

LC M-5 Meter - "Unibody" style body. The meter has a low-mounted adjuster housing with a 2-screw dust cover and a packing gland with a 24 tooth gear. This meter is for industrial / loading rack use.

Identification points:

• No grooves on the mounting surfaces of the inlet and outlet flanges.

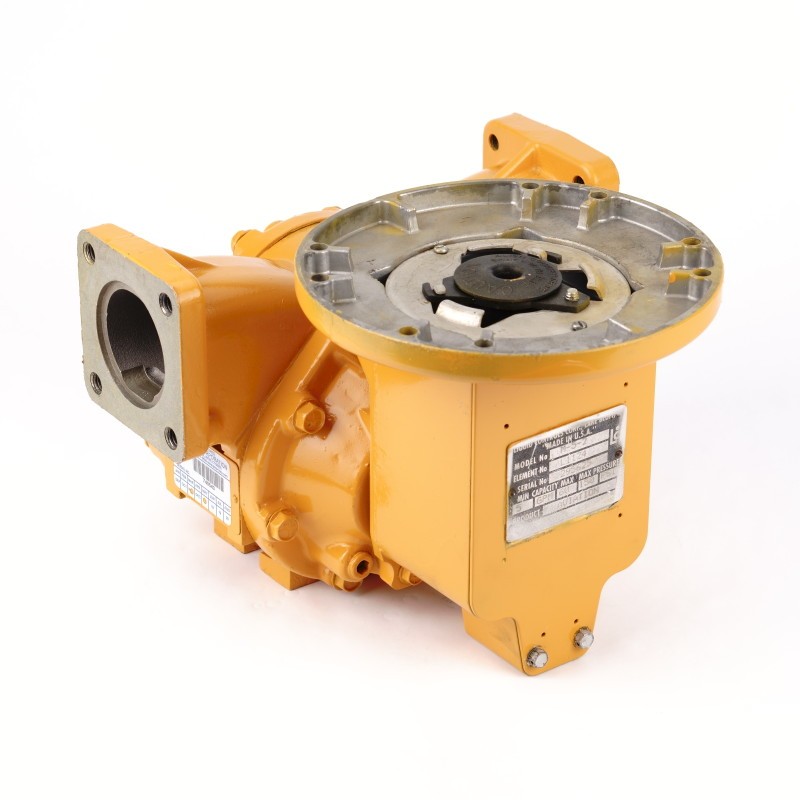

• Adjuster has 2-screw dust cover and the bottom of the adjuster housing is even with the bottom of the meter casting.

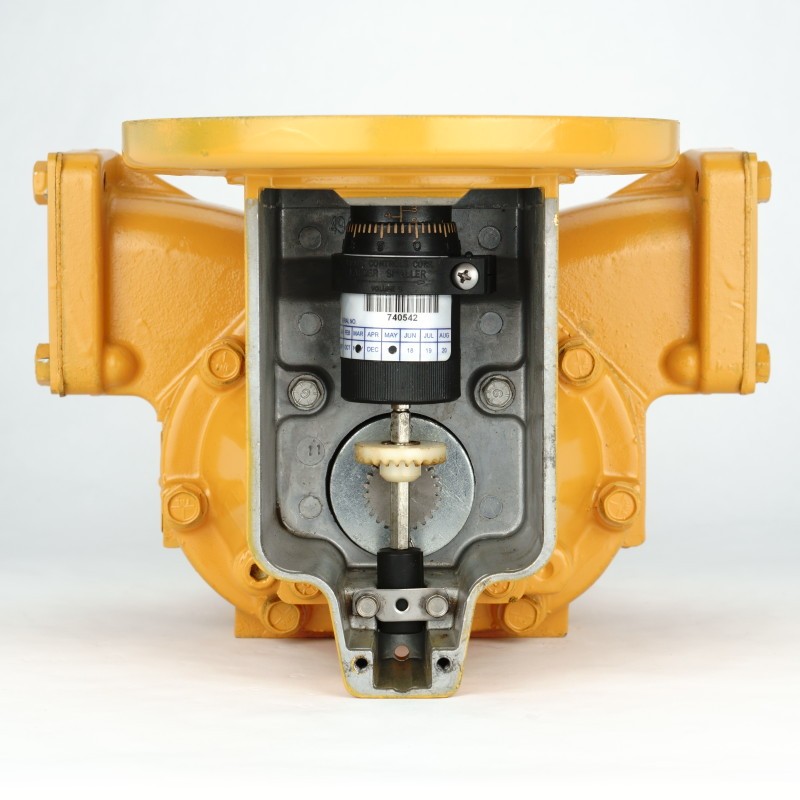

• Behind the dust cover of the adjuster housing, the output shaft from the meter body has a 24 tooth pinion gear which meshes with the white plastic gear driving the adjuster shaft.
