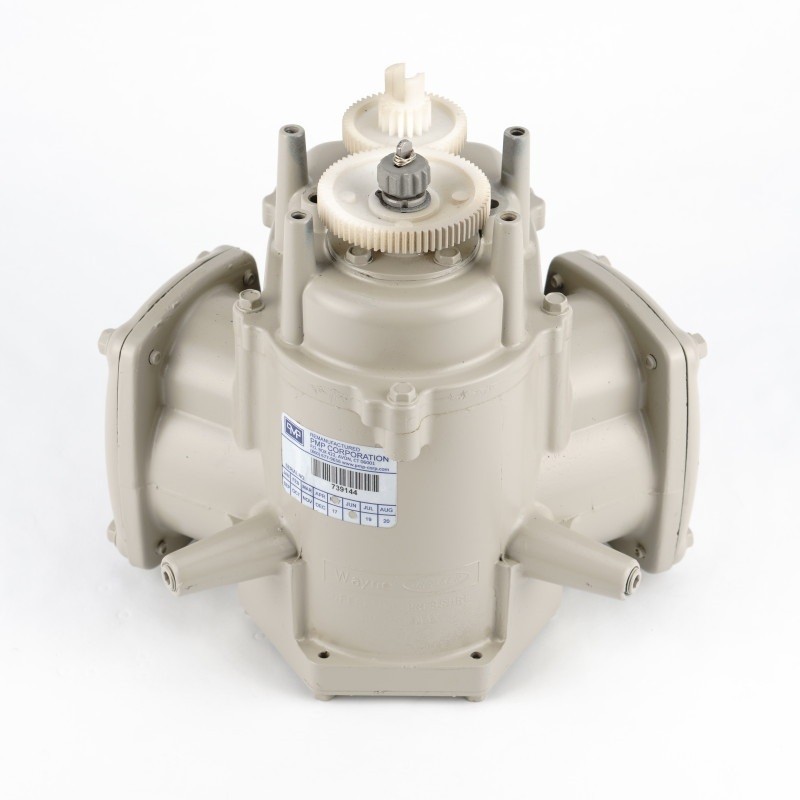

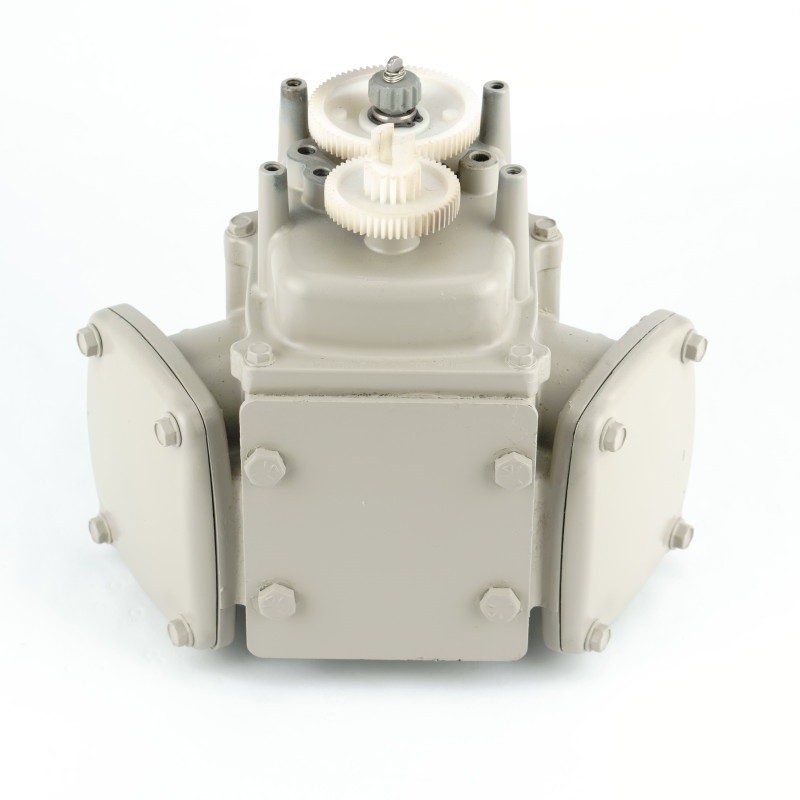

Wayne® Meter 2PM-6K Electronic - US Gallons - for diesel

PMP Part #: 26003-D

Wayne Meter 2PM-6K Electronic, low speed (10 GPM), for diesel - gallons.

Two gears for electronic computer dispensers

Accepts check valve

Gear teeth: pinion - 75, drive - 56 (plastic)

The 26003-D has several upgrades to better resist corrosive conditions.  PMP makes the following upgrades to the standard meter design:

  • Side covers are upgraded from stamped steel to a more rigid cast aluminum.
  • Bottom plate is upgraded from the standard steel plated with zinc yellow chromate to a thicker gauge nickel-plated steel.
  • O-rings for the cylinder covers, inlet and outlet are upgraded from fluoroelastomer to fluorosilicone O-rings.
  • Installation O-rings upgraded to fluorosilicone.
  • Plain internal steel screws are upgraded to corrosion-resistant stainless steel screws.
