LC® M-5® Unibody Meter, 2-screw dust cover, high adjuster housing, 8T packing gland gear

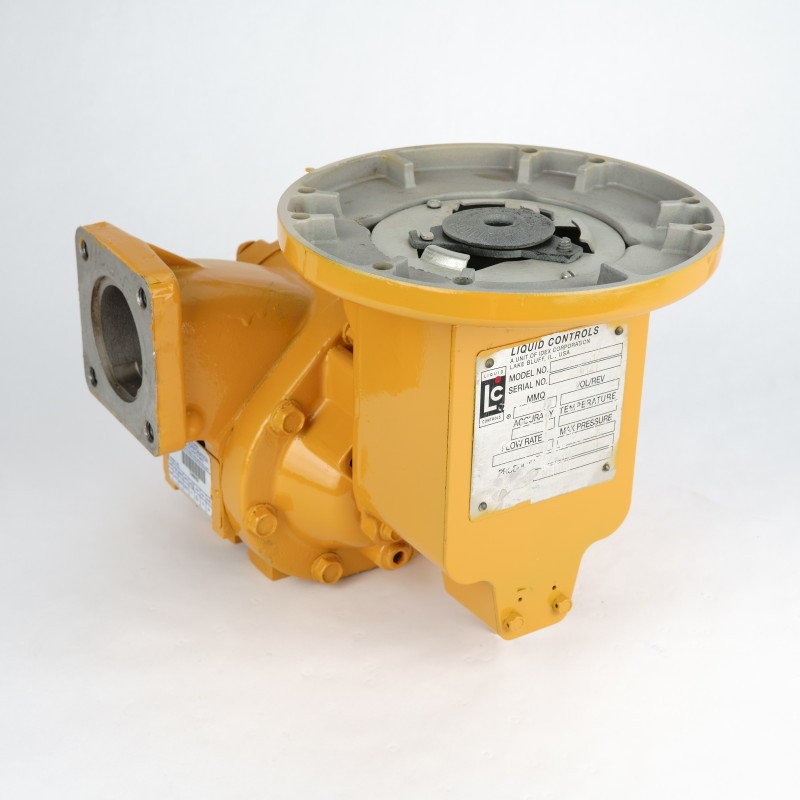

LC M-5 Meter - "Unibody" style body. The meter has a high-mounted adjuster housing with a 2-screw dust cover and a packing gland with an 8 tooth gear. This meter is for industrial / loading rack use.

Identification points:

  • No grooves on the mounting surfaces of the inlet and outlet flanges.
  • Adjuster has 2-screw dust cover and the bottom of the adjuster housing is approximately 1 inch above the meter casting.

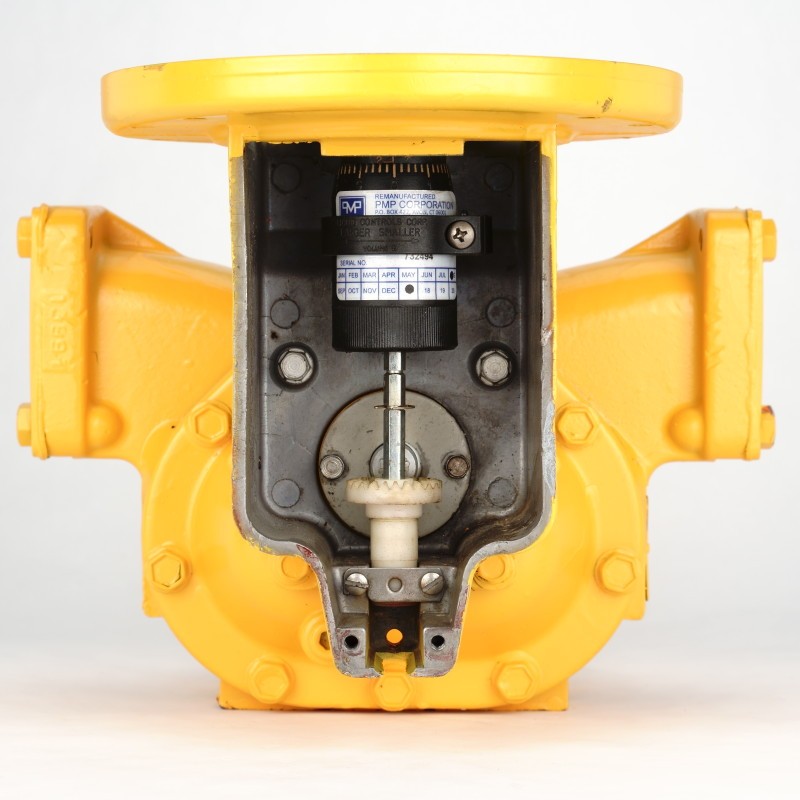

  • Behind the dust cover of the adjuster housing, the output shaft from the meter body has an 8 tooth pinion gear which meshes with the white plastic gear driving the adjuster shaft.
